Lamp bead :SMD2835
Quantity: 600 pieces
Input voltage: AC220V/50HZ
Power: 200w
Current :6A
Color rendering index: Ra≥95 (with diffusion plate measurement) R9≥95, TLCI≥93 Luminous efficiency :130lm/w
Measured illuminance data table: 1 m 10610LUX, 2 m 3300LUX, 3 m 1530LUX,
Four meters 1010LUX, five meters 650LUX
Color temperature: 3200K/5600K±150K, 3200K-6500K
Optical system: 100% linear dimming, no stroboscopic noise
Dimming curve: Built-in 4 dimming curves
Light Angle: 115°
Temperature rise: 25°
Aluminum substrate thermal conductivity: 3.0
Cooling system: nickel plating process on the surface of interspersed fin
Counting function: real-time display of light source working time
Control protocol: DMX512, RDM, ARTNET
Channel mode: monochrome 1 channel, two-color 4 channels

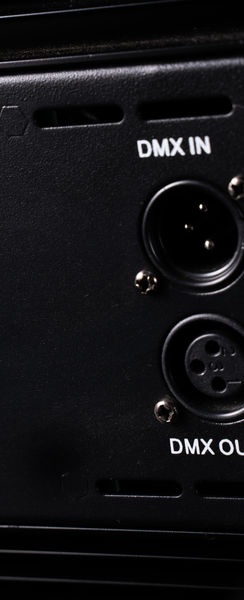

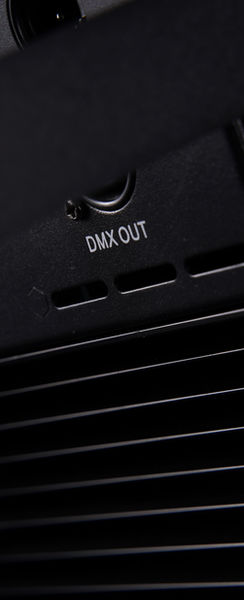

Signal line: signal line three-core cannon head input, signal line three-core cannon base output
Operating temperature: -20~+50℃
Storage temperature: -20~+60℃
Case: Metal case
Color: Black
Size: 280*510mm*130mm
Net weight: 12KG
