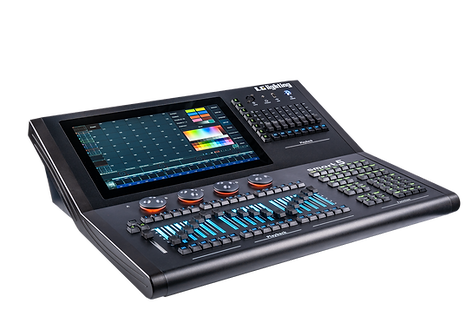

Console Smart 5
 Brilliant lights command wings

1. Independent intellectual property rights with design patents, computer copyright registration certificates, integrated circuit layout design certificates, and other patents. Offers third-party authoritative inspection reports.
2. Linux operating system with strong stability.
3. Powered by the latest 10th generation Intel CPU for high computational power and fast performance.
4. 8 optically isolated DMX512 signal output ports; 4096 DMX channels, expandable to 64 DMX outputs with 32,768 DMX channels.
5. Supports multiple fixture library formats: R20 library/D4 library/XML library. Built-in fixture library editor enables users to create fixture libraries directly on the console.
6. 1 Art-NET network interface supports expanded DMX output ports, DMX512 signal transmission via Ethernet, and connection to 3D simulation software.
7. Supports central control protocol.
8. 15.6-inch TFT-LCD capacitive multi-touch screen.
9. Built-in multilingual interface: Chinese, English, Russian, German, Spanish, Japanese, and more, with customizable language options.

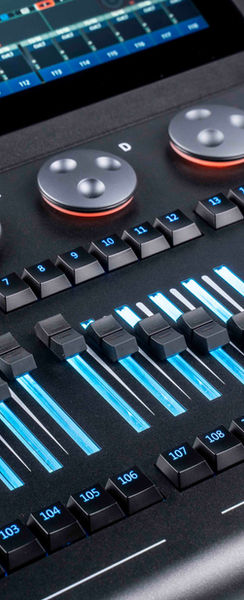

10. 18 playback faders ,  18 flash buttons, with 60 pages a
11. 8 preset playback faders capable of outputting 44 playback programs simultaneously.
12. 4 imported industrial-grade wear-resistant encoders with adjustable backlight colors.
13. Tri-color backlit mechanical wear-resistant buttons, supporting various backlight color combinations.
14. Playback faders support customizable background colors.
15. Features vector-based fixture layout functionality, presenting on-site layout arrangements for more direct and convenient fixture control.
16. Supports creating workspaces for quick interface retrieval.
17. Keyframe functionality for creating custom graphics.
18. Built-in graphics shapes allows modifying parameters like direction and offset for creating stunning lighting effects quickly.
19. Supports creating graphics with options to import and export.Can share with different console.
20. Various FAN effects with a hand-drawn fan mode for quick fixture modeling.
21. Naming support for text, handwritten doodles, border colors, and more.
22. Timecode supports internal player, external MIDI, and LTC timecode triggering, enabling one-click activation of multiple trigger modes.
23. Built-in music player compatible with MP3, WAV, FLAC, APE, and other formats.
24. Independent CMY or RGB color mixing system with categorized color blocks.
25. Program priority feature allows setting multiple playback programs with different priority levels for higher-priority execution.
26. Supports attribute time modification, including delay, fade-in, fade-out, and fixture overlap.
27. Playback programs support dimming, flash, pause, and other mode options.
28. Built-in fixture libraries for common moving heads.
29. Built-in Wi-Fi receiver for connecting to Wi-Fi hotspots.
30. All show files can be backed up to a USB drive or the console itself to prevent data loss.
31. Supports ≥10,000 fixtures and ≥1000 fixture groups.
32. Supports ≥1000 materials, with categorized material organization.
33. Includes ≥1 audio output port, ≥1 headphone monitoring port, and ≥1 12V gooseneck lamp port.
34. With application, the console can be controlled via mobile phones, tablets, or other mobile devices for playback and program control.
35. Console supports remote upgrades, with regular optimization and function updates.
36. Supports wireless or wired control, including remote control via mobile phones, tablets, or Android wall panels.
37. Power supply: AC100-250V, 50-60Hz.
