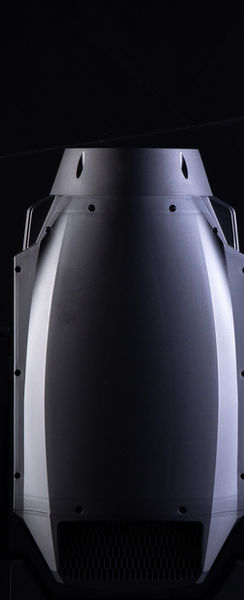

Beam Light VP20IP  PROFILE
Four in one luxury model

◇ Light source: 1200W LED white light module light source
Rated lifespan: 20000 hours
Color temperature: 7800K
◇ Beam angle: 5-50 °
◇ Color 1: 6 color chips+high contrast finger chips+white light
◇ Color 2: Independent CMYK+CTO linear color temperature system
◇ Effect disk: Independent effect disk with linear cutting and infinite rotation function
Fixed pattern: 1 fixed pattern plate, 5 patterns+2 white lights
◇ Rotating pattern: 6 interchangeable rotating glass pattern pieces+white light
◇ Glass pattern size: outer diameter 27.9MM pattern 23MM thickness 1.1MM
Cutting system: 4 gratings achieve fast and smooth cutting, and each grating can have its own cutting direction and angle
Establish control; The entire cutting module can rotate ± 90 ° for a total of 180 degrees
◇ Prism: Professional high-definition prism effect, with adjustable prism angle
◇ Electric aperture: Fast electric aperture, linear 5% to 100% spot scaling, with macro functionality and multiple effects
Fruit changes.
◇ Optical lens: high-precision laminated optical lens
◇ Soft light effect: independent control of light and heavy atomization dual fog
◇ Focusing: Linear focusing
◇ Dimming: 0-100% linear adjustment
◇ Strobe: Electronic strobe (0.5-20 times/second)
There are a total of 27 ultra quiet motors, two three-phase motors, and 16 bit motors
◇ Appearance: Magnesium aluminum alloy+carbon fiber
◇ Display screen: LCD LED display screen+button control
◇ Horizontal/Vertical: XY axis motor, horizontal 540 °, Y-axis infinite rotation
Control protocol: DMX512, RDM
◇ Control channel: 65
Voltage: 100-240V, 50/60Hz
Rated power: around 1400W
◇ Total weight of lamp body: about 39KG
◇ Lamp body size: 454 * 327 * 827mm
Certificate: CE&RoHS
◇ Protection level: IP65
